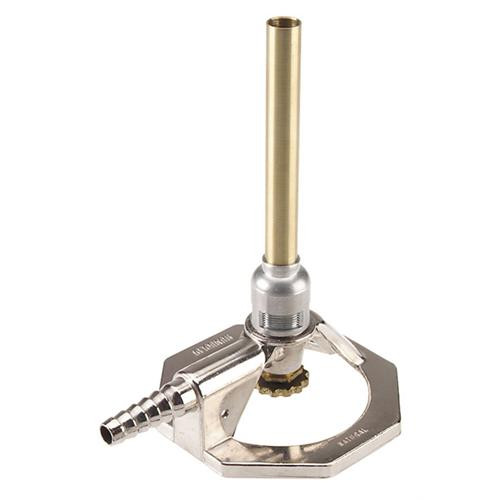

Tirrill Burner w/o Pilot Flame, Natural Gas Type, 4.75 CFH, 4,868.75 BTU Output, 6" (152mm) Overall Height

The Tirril Burner w/o Pilot Flame (ASTM D3713) supports the following standards: ASTM D3713 Humboldt's Flame Test Burners are designed to be used as ignition sources for small-scale burning tests, such as the UL flame test and other similar test standards. Burner produces a clear flame of any desired height from 1/2" (12.7mm) to 12" (305mm). The burner consists of a threaded aluminum air control sleeve and precision machined, fine-pitch brass needle valve with internal stuffing box and self-sealing packing. The brass mixing tube ID is 3/8" (9.5mm) and overall height is 6" (152mm). A rustproof 3-1/2" (89mm) octagon-shaped, plated die-cast base is also utilized. *Note: CFHs and BTU Outputs are figured on: 5 inch Water Column Pressures for Artificial and Natural Burners. 11 inch Water Column Pressures for LP Burners. Inlet OD for all Burners: 5/16" Serrated.

UPC:

41113102

Condition:

New

Weight:

1.00 Ounces

HazmatClass:

No"

Quantity:

1

Unit of Measurement:

EA

WeightUOM:

LB

MPN:

H-6241N

Model Number:

1196Z28
